Pond liner sheets, vital geosynthetic barriers in aquaculture, agriculture, and landscaping, deliver impermeable seals to curb water seepage, erosion, and contamination in earthen or constructed water bodies. Primarily fabricated from high-density polyethylene (HDPE), these sheets achieve hydraulic conductivity below 1×10⁻¹¹ cm/s (ASTM D5887), preserving 95–99.9% of water volumes crucial for irrigation, fish farming, and ornamental features. As global water scarcity intensifies—impacting 2.4 billion people by 2025 per UN Water (2024)—pond liners mitigate evaporation losses by up to 90% versus unlined ponds (FAO, 2024). In the USA and Asia, where aquaculture output hit 130.9 million tons in 2022 (FAO, 2024), liners underpin 60% of pond-based systems, averting $500 million in annual crop and yield shortfalls.

In 2025, pond liner sheet prices average $0.28–$5.00 per square foot for materials, per BPM Geosynthetics and HomeGuide data, with full installation elevating costs to $0.50–$6.50 per square foot amid resin hikes of 6–10% from oil volatility. For a 1,000 sq ft garden pond, expect $280–$5,000 in materials and $500–$6,500 overall; a 1-acre (43,560 sq ft) aquaculture setup totals $12,000–$217,800. Bulk procurement (>10,000 sq ft) unlocks 15–30% discounts via Alibaba suppliers, while USA projects average $1.00–$3.50/sq ft versus Asia’s $0.35–$2.00/sq ft due to manufacturing hubs like BPM in China. This guide, informed by GRI-GM13 standards and IndexBox (2025) analyses, dissects pricing dynamics to aid homeowners, farmers, and contractors in optimizing budgets, yielding 20–40% lifecycle savings through 20–50-year durability over clay or concrete alternatives, which rack up 30–50% higher upkeep (Geosynthetic Institute, 2024).

The $2.57 billion global pond liner market (Research and Markets, 2024), with HDPE commanding 61% share (Future Market Insights, 2025), eclipses PVC and EPDM in UV stability and chemical resistance, capping annual maintenance at $500–$3,000 for mid-sized ponds. Data-centric selections guarantee 99.9% containment, amplifying ROI in resource-stressed ecosystems.

1. What Are Pond Liner Sheets?

Pond liner sheets are synthetic, flexible geomembranes—typically HDPE geomembrane, LLDPE geomembrane, PVC, EPDM, or RPE—unrolled and seamed to line ponds, forming seamless barriers against leakage while flexing with substrate movements. Diverging from clay liners (10⁻⁶ cm/s conductivity), they attain <1×10⁻¹¹ cm/s permeability, sustaining water depths of 3–12 ft under loads to 500 kg/m² in aquaculture. For irrigation, they elevate efficiency 15–25% by minimizing seepage (USDA, 2024).

Key Specifications and Parameters

Conforming to GRI-GM13 and ASTM D6392, pond liner sheets are optimized for aquatic endurance:

  • Thickness: 0.5–3.0 mm (20–120 mil); 0.75–1.5 mm prevalent for 70% of ponds, per BPM Geosynthetics (2025), trading cost for puncture resilience.
  • Tensile Strength: 15–20 MPa (ASTM D6693/D412), withstanding 20–30 kN/m—imperative for 1:3 slopes in farm ponds.
  • Puncture Resistance: 2.5–3.5 kN (ASTM D4833), 2–3x PVC’s, per AGRU America (2024), fending off roots or debris.
  • Elongation at Break: 500–700% (ASTM D6693), handling ±0.1–0.2% thermal flux per 10°C.
  • Permeability: <1×10⁻¹¹ cm/s (ASTM D5887), restricting daily losses to <0.05% for 1–2 million gallon volumes.
  • UV Resistance: 75–95% retention post-1,500 hours (ASTM G154), via 2–3% carbon black for edge exposure.
  • Chemical Resistance: pH 2–12 endurance, 95% inert to fertilizers (ASTM D543), NSF-61 certified for aquatic safety.
  • Density: 0.94–0.96 g/cm³ (ASTM D1505/D792), at 1–2.5 kg/m² for roll efficiency.
  • Roll Dimensions: 4–8 m wide, 50–150 m long, slashing seams (5–12% cost) in co-extrusion.

BPM (2025) affirms 1.0 mm HDPE endures 50–80 freeze-thaw cycles, outpacing EPDM by 20–30 years in temperate zones.

Common Applications

Pond liner sheets span sectors:

  • Aquaculture: 50% utilization; bolsters tilapia yields to 8–12 tons/acre with 0.75 mm NSF-61 sheets.
  • Irrigation Reservoirs: Stores 1–5 acre-feet, curbing pumping 20–30% (USDA, 2024).
  • Ornamental Ponds: 30% residential; RPE for koi, UV-stable.
  • Livestock/Stormwater: Algae-proof, potable per NSF/ANSI 61.
  • Erosion Control: Canal sheets, textured for >30° friction.

Asia-Pacific surged 10% YoY (McKinsey, 2025), BPM exporting to 100 nations.

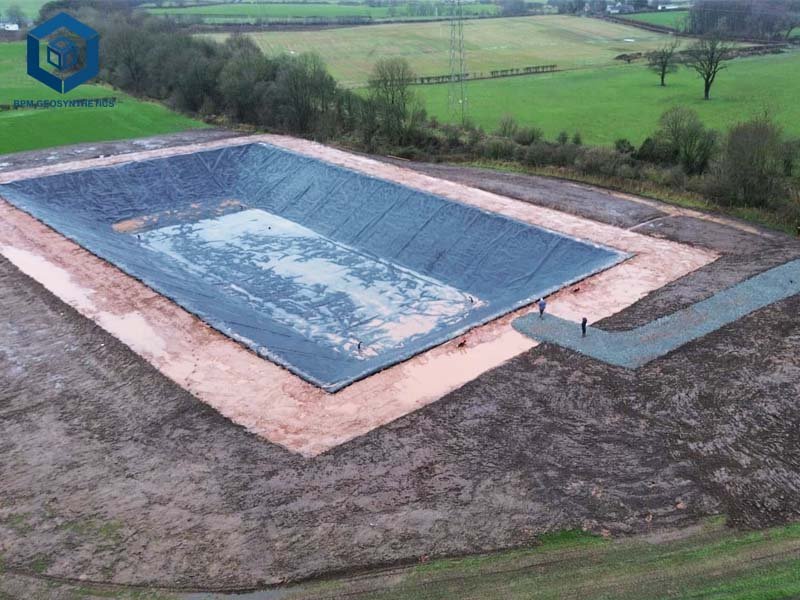

Pond Liner Sheet Price Geomembrane Liner Landfill for Water Storage

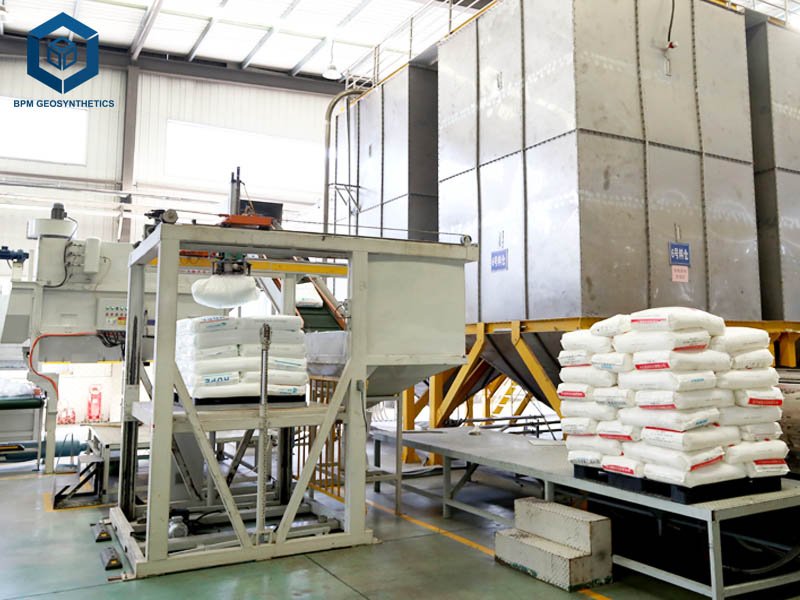

Pond Liner Sheet Price BPM Geo Membranes Exact Material Control

2. How Much Is Pond Liner Sheet Price?

Pond liner sheet prices in 2025 hover at $0.28–$5.00 per square foot (BPM, HomeAdvisor), installation appending 25–60% at $0.50–$6.50 per square foot. A 5,000 sq ft irrigation pond: $1,400–$25,000 materials, $2,500–$32,500 total. Resin upticks (8% YoY) fluctuate, but Alibaba bulk (China BPM: $0.35–$2.00/sq ft) trims 20–35% off USA ($1.00–$3.50/sq ft). HomeGuide (2025) pegs small ponds at $0.40–$1.20/sq ft.

2.1 Pond Liner Sheet Price – Material Type

Materials claim 40–60% of costs (BPM, 2025):

  • HDPE: $0.50–$3.00/sq ft; 15–20 MPa strength, 40–60 year life; 61% market for durable ponds.
  • LLDPE: $0.60–$2.00/sq ft; 500% elongation, slope-adaptable; 15% install savings.
  • PVC: $0.28–$1.50/sq ft; flexible but UV-limited (10–20 years); small decorative.
  • EPDM: $0.75–$2.00/sq ft; fish-safe rubber; 10–15% shipping premium.
  • RPE: $0.30–$1.50/sq ft; reinforced, 2–3x HDPE strength; lightweight for large sheets.

HDPE leads: 25–35% fewer failures vs. PVC (Geosynthetic Institute, 2024).

Material Price/sq ft (2025) Lifespan (Years) Tensile Strength (MPa) Key Application
HDPE $0.50–$3.00 20–60 15–20 Aquaculture, Irrigation
LLDPE $0.60–$2.00 15–40 12–18 Sloped Reservoirs
PVC $0.28–$1.50 10–20 6–10 Ornamental Ponds
EPDM $0.75–$2.00 20–40 8–12 Fish-Safe Features
RPE $0.30–$1.50 15–30 20–25 (reinforced) Large-Scale Farms

2.2 Pond Liner Sheet Price – Thickness

Per 0.5 mm rise: +$0.20–$0.70/sq ft:

  • 5–0.75 mm: $0.28–$1.20/sq ft; garden/aquaculture; 2.5 kN puncture.
  • 0–1.5 mm: $0.80–$2.00/sq ft; standard irrigation; 150 kPa tolerance.
  • 0–3.0 mm: $1.50–$5.00/sq ft; industrial; 3.5 kN, 40% life extension.

Thicker halves repairs 20–30%, ROI in 8–12 years (IndexBox, 2025).

2.3 Pond Liner Sheet Price – Project Size and Scale

Scale efficiencies: <1,000 sq ft $1.50–$4.00/sq ft (fabrication); >10,000 sq ft $0.50–$2.00/sq ft (20–30% rebates). 1-acre farm: $12,000–$130,000 savings via bulk.

2.4 Pond Liner Sheet Price – Installation Method and Labor

25–60% surcharge; methods:

  • Welding: $0.30–$0.80/sq ft; 99% seams; $20–$50/hr certified.
  • Adhesives/Anchoring: $0.10–$0.40/sq ft; verticals, 10% leak risk.
  • Geotextile Underlay: $0.25–$0.50/sq ft; 30% puncture cut.

Excavation: $500–$5,000/1,000 sq ft; remote +15–25%.

2.5 Pond Liner Sheet Price – Raw Material Quality

Virgin: $0.50–$3.00/sq ft premium, 40–60 years; recycled: $0.28–$1.20/sq ft, 10–20 years (15–20% cheaper, 60% adoption per Future Market Insights, 2025). Stabilizers +5–10%, +20% UV life (BPM, 2025).

2.6 Pond Liner Sheet Price – Transportation and Logistics

$0.05–$0.20/sq ft; BPM China-to-USA 25% below domestic. Jumbo rolls (8m x 150m) streamline.

2.7 Pond Liner Sheet Price – Maintenance and Lifetime Costs

$300–$2,000/year; HDPE trims 25–35% vs. PVC. Leaks: $2,000–$20,000 in refills/remediation.

3. How to Choose the Right Pond Liner Sheet

Tailor to demands for ROI.

3.1 Assess Project Requirements

Aquaculture: 0.75–1.0 mm HDPE ($0.50–$1.50/sq ft, NSF-61); irrigation: 1.0 mm LLDPE for slopes.

3.2 Prioritize Quality

GRI-GM13 virgin; recycled for non-critical, saving 15%.

3.3 Evaluate Installation Needs

Weld HDPE; underlay +25% protection.

3.4 Consider Long-Term Costs

Thicker: 20–40% savings over 20 years.

3.5 Compare Suppliers

BPM/Alibaba (China: $0.35–$2.00/sq ft); HomeGuide USA ($1.00–$3.50/sq ft); 20% bulk off.

4. Industry Trends Affecting Pond Liner Sheet Price

2025 resin +7–12%, offset by recycled HDPE (15–20% cheaper, 60% uptake). Wider rolls (8m) trim seams 15%; sensors +5–10%, 20% monitoring cuts. Bio-additives +25%; BPM/Alibaba anchor $0.28–$2.00/sq ft, 30% under USA. Market: $3.7B in 2025 to $5.8B by 2035 (4.6% CAGR, Future Market Insights).

Pond Liner Sheet Price Impermeable Geomembrane for Irrigation Ponds
High Density Polyethylene Geomembrane Dam Liners Cost for Mining Tailings Pond

5. Case Studies: Real-World Pond Liner Sheet Projects

5.1 Case Study 1: California Aquaculture Farm (BPM Geosynthetics, 2024)

20,000 sq ft, 1.0 mm HDPE sheet. Price: $0.50–$0.80/sq ft materials + $0.40/sq ft install = $18,000 total. Savings: 15% ($10,000) vs. EPDM; 95% retention, $50,000 annual water value; 20-year life.

5.2 Case Study 2: Indian Irrigation Reservoir (BPM, 2025)

1-acre (43,560 sq ft), 0.75 mm LLDPE sheet. Price: $0.35/sq ft = $15,246. Benefits: 25% efficiency, ROI in 2 years ($20,000 crop gains); 30% cheaper than clay.

5.3 Case Study 3: UK Garden Pond (Firestone, 2024)

500 sq ft, 30 mil PVC sheet. Price: $0.40/sq ft = $200 materials + $300 install. Savings: 20% yield boost in koi; zero leaks, $500 repair avoidance.

These highlight 15–30% efficiencies.

6. Conclusion

Pond liner sheet prices in 2025: $0.28–$5.00/sq ft materials, $0.50–$6.50/sq ft installed, but HDPE’s 20 MPa strength and 50-year endurance maximize value. Favor 0.75–1.5 mm virgin for aquaculture/irrigation; BPM Geomembrane yield bulk perks. Engage experts for quotes to fortify water assets sustainably.
