When it comes to tailings dam safety and environmental protection, selecting the right HDPE liner for tailing dams is crucial. As a leading manufacturer of high-quality geomembranes, BPM Geomembrane provides durable, chemically resistant HDPE liners designed to withstand harsh mining conditions. But with various thicknesses, textures, and material grades available, how do you choose the best liner for your project? In this guide, we’ll explore key factors to consider—from puncture resistance to UV stability—ensuring your tailings storage facility remains secure and compliant.

1. What Is HDPE Liner for Tailing Dams? – The Ultimate Protective Barrier

High-Density Polyethylene (HDPE) liner is a critical engineered geomembrane used in tailing dams to prevent hazardous mining byproducts—such as heavy metals, acids, and toxic slurry—from contaminating soil and groundwater. As the mining industry faces stricter environmental regulations, HDPE liners have become the gold standard for tailings containment due to their unmatched chemical resistance, durability, and impermeability.

1.1 Why HDPE Liners Are Essential for Tailing Dams

  • Impermeable Barrier – With extremely low permeability (≤1×10⁻¹³ cm/s), HDPE liners block seepage, protecting surrounding ecosystems.

  • Chemical Resistance – Unlike other materials, HDPE withstands acids, alkalis, and solvents commonly found in mine tailings.

  • Longevity – Properly installed HDPE liners can last 50+ years, even in harsh UV and temperature conditions.

  • Regulatory Compliance – Meets global standards like GRI-GM13, EPA, and ISO for environmental safety.

1.2 How BPM Geomembrane Enhances Tailing Dam Safety

As a leading HDPE geomembrane manufacturer, BPM Geomembrane produces high-performance liners with:

  • Custom thicknesses (1.0mm–3.0mm) for varying load demands.

  • Textured surfaces for better slope stability and friction.

  • UV & antioxidant stabilization for long-term exposure resistance.

Whether for heap leach pads, tailing storage facilities, or waste containment, the right HDPE liner ensures environmental protection, regulatory compliance, and cost-effective mining operations.

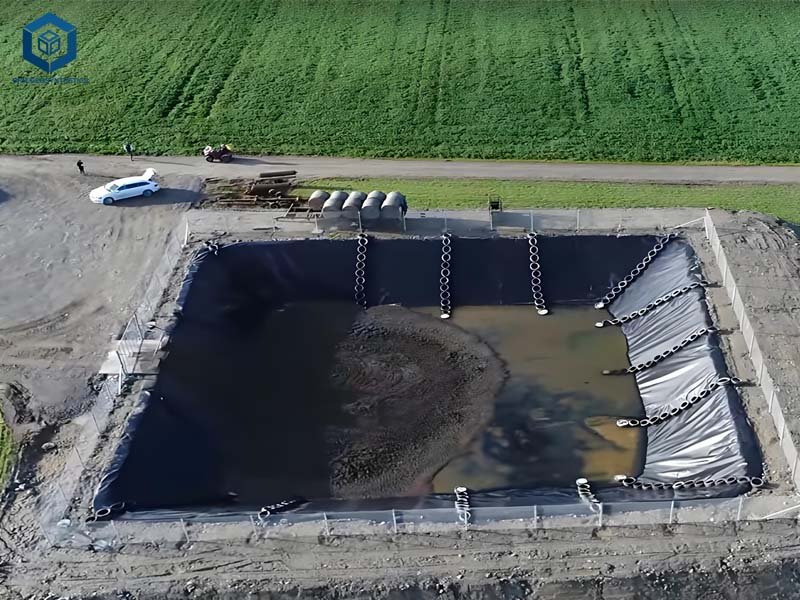

Geomembrane Plastic Pond Liner for Dam Project
High Quality Heap Leach HDPE Geomembrane

2. What are the key factors in selecting HDPE Liners for Tailing Dams?

Selecting the right HDPE liner for tailing dams is crucial for long-term containment, environmental safety, and regulatory compliance. Unlike generic geomembrane applications, tailing dams face extreme chemical, mechanical, and environmental stresses. Here are the most critical factors to consider when choosing an HDPE liner:

2.1 Chemical Compatibility & Tailings Composition

  • Acid/Alkali Resistance – Some tailings contain sulfuric acid (from sulfide ores) or caustic chemicals. Standard HDPE may degrade; specialized resin blends with antioxidants are often needed.

  • Heavy Metal & Solvent Resistance – Ensure the liner won’t weaken when exposed to arsenic, cyanide, or hydrocarbon byproducts.

  • Oxidation & Hydrolysis Risks – Long-term exposure to oxidizing agents requires stabilized HDPE formulations.

2.2 Thickness & Puncture Resistance

  • 1.5mm–3.0mm is typical, but thickness must match:

    • Substrate roughness (sharp rocks require thicker liners).

    • Equipment traffic (if heavy machinery operates over the liner).

  • Puncture Resistance (ASTM D4833) – Critical for preventing leaks from settling or seismic shifts.

2.3 Seam Strength & Installation Integrity

  • Fusion Welding Quality – Weak seams are the #1 cause of liner failure.

    • Dual Hot Wedge or Extrusion Welding should meet ≥90% parent material strength.

  • Field Seam Testing – Air Lance, Vacuum Box, or Ultrasonic Testing ensures no leaks.

2.4 UV & Thermal Stability

  • Exposed Liners – Require carbon black stabilization (2-3%) to prevent UV degradation.

  • High-Temperature Sites (e.g., heap leach pads) – Need thermal expansion-resistant HDPE to avoid warping.

2.5 Slope Stability & Friction Properties

  • Textured HDPE Liners (co-extruded or spray-on) improve interface friction on steep slopes.

  • Shear Strength Testing – Ensures liner doesn’t slip under load.

2.6 Regulatory & ESG Compliance

  • Must meet:

    • GRI-GM13 (Geosynthetic Institute)

    • EPA & Mining Waste Directive (region-specific)

    • Investor ESG Requirements – Leak-proof liners reduce environmental liabilities.

2.7 Long-Term Durability vs. Cost

  • Cheap Liners = High Risk – Savings upfront can lead to costly leaks, cleanup fines, or dam failures.

  • Lifecycle Cost Analysis – HDPE liner may last 50+ years.

Why Choose BPM Geomembrane?

As a leading HDPE geomembrane manufacturer, BPM provides:

  • Custom-engineered liners for aggressive tailings chemistry.
  • Third-party tested seams for leak-proof performance.
  • UV & chemical-resistant formulations for extreme conditions.

3. How To Choose HDPE Liner For Tailing Dams?

Selecting the proper HDPE liner for tailing dams requires careful consideration of multiple technical and environmental factors. As containment systems for mining byproducts, tailing dams demand liners that can withstand unique challenges over decades of service. Here are the essential aspects to evaluate:

3.1 HDPE Liner For Tailing Dams – Material Specifications

  • Polymer quality: Opt for virgin HDPE resin with high-density properties

  • Thickness selection: Typically 1.5mm to 3.0mm based on project requirements

  • Carbon black content: 2-3% for UV protection in exposed applications

  • Additive packages: Consider antioxidants for oxidative environments

3.2 HDPE Liner For Tailing Dams – Chemical Compatibility

  • Analyze tailings composition for acids, alkalis, and solvents

  • Verify chemical resistance data for specific contaminants

  • Consider specialized formulations for extreme pH conditions

3.3 HDPE Liner For Tailing Dams – Physical Durability

  • Puncture resistance for substrate conditions

  • Tensile strength for stress conditions

  • Tear resistance for installation and service life

3.4 HDPE Liner For Tailing Dams – Installation Requirements

  • Seam strength and welding methodology

  • Subgrade preparation needs

  • Anchoring and termination details

  • Quality control testing protocols

3.5 HDPE Liner For Tailing Dams – Environmental Factors

  • UV exposure duration and intensity

  • Temperature extremes and fluctuations

  • Potential biological impacts

  • Seismic activity considerations

3.6 HDPE Liner For Tailing Dams – Regulatory Compliance

  • Local environmental regulations

  • Industry standards (GRI-GM13, etc.)

  • Long-term monitoring requirements

3.7 HDPE Liner For Tailing Dams – Lifecycle Considerations

  • Expected service life

  • Maintenance requirements

  • Repair protocols

  • End-of-life planning

BPM Geomembrane offers technical consultation to help navigate these selection criteria. Our engineers can assess your specific project conditions and recommend optimal liner specifications to ensure long-term performance and regulatory compliance. With extensive experience in mining applications, we understand the critical nature of tailings containment and provide solutions tailored to each project’s unique challenges.

The right HDPE liner choice balances initial costs with long-term performance, ensuring environmental protection while meeting operational requirements. Proper selection requires understanding both the technical properties of geomembranes and the specific conditions of each tailings storage facility.

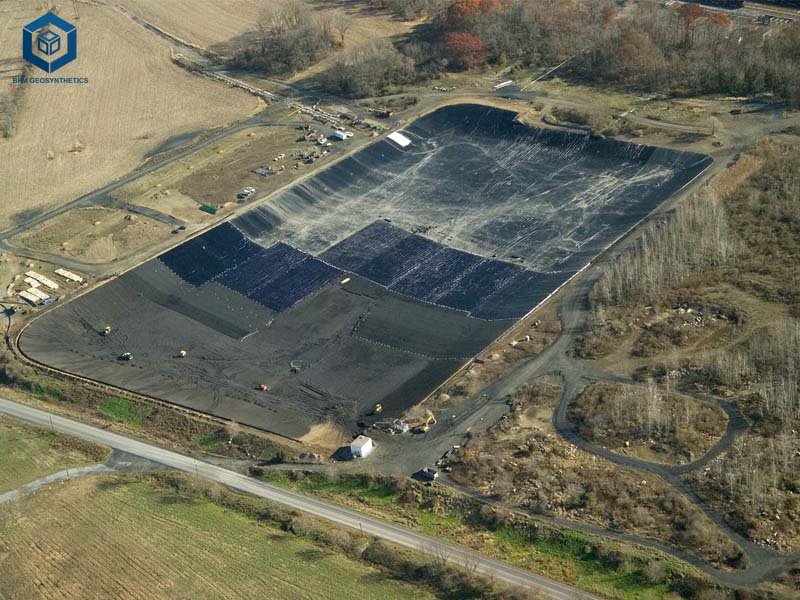

60 mil HDPE Liner Price for Tailings Management
High Density Polyethylene Geomembrane for Mining Project

4. How to Balance Cost and Performance in HDPE Liner Selection for Tailing Dams？

When selecting HDPE liners for tailing dams, project owners often face the dilemma of balancing upfront costs with long-term performance. While it may be tempting to opt for the most economical solution, true cost-effectiveness requires careful evaluation of site-specific risks and potential long-term consequences.

4.1 Thickness Considerations: More Isn’t Always Better

  • Thicker liners (e.g., 2.5mm or 3.0mm) are often perceived as “safer,” but they may not always be necessary

  • Excessive thickness can lead to:

    • Higher material and installation costs

    • Reduced flexibility and increased stress concentrations

    • More challenging field welding and seam quality control

  • Optimal thickness should be determined by:

    • Substrate conditions (rocky vs. smooth)

    • Expected loads and stresses

    • Chemical exposure levels

    • Projected service life requirements

4.2 The True Cost of “Budget” Liners

Lower-priced liners may appear attractive initially but often lead to:

  • Increased Maintenance Costs

    • More frequent repairs and inspections

    • Potential for premature failure

  • Regulatory and Liability Risks

    • Non-compliance penalties

    • Environmental damage claims

    • Increased insurance premiums

  • Remediation Expenses

    • Contamination cleanup costs

    • Potential dam reconstruction

    • Reputation damage

  • Operational Disruptions

    • Unplanned downtime for repairs

    • Production interruptions

4.3 Making the Right Investment

A properly specified HDPE liner represents a balance between:

  • Adequate protection for site-specific conditions

  • Reasonable initial investment

  • Minimized lifecycle costs

BPM Geomembrane’s engineering team can help conduct a comprehensive cost-benefit analysis considering:

  • Site geotechnical conditions

  • Tailings chemistry

  • Climate factors

  • Regulatory requirements

By focusing on total cost of ownership rather than just purchase price, operators can avoid false economies and select liners that deliver optimal performance throughout the dam’s service life.

5. Conclusion

Selecting the optimal HDPE liner for tailing dams is not just about meeting minimum requirements—it’s about balancing performance, cost, and risk mitigation to ensure decades of safe, compliant operation. While upfront savings may seem appealing, the true measure of value lies in a liner’s ability to prevent environmental contamination, reduce liability, and avoid costly remediation. By carefully evaluating site-specific conditions—from chemical exposure to geotechnical stresses—and partnering with an experienced manufacturer like BPM Geomembrane, operators can implement a containment solution that delivers both technical reliability and long-term economic benefits. The right liner choice is an investment in environmental stewardship, operational continuity, and sustainable mining practices—one that pays dividends throughout the life of the tailings facility.

For a customized liner recommendation based on your project’s unique needs, contact BPM Geomembrane’s technical experts today.
