Dam liners, also known as geomembrane liners, are critical synthetic membranes used to prevent water seepage in dams, reservoirs, and irrigation systems, ensuring water conservation and structural stability. With the global geomembrane market valued at $2.1 billion in 2024 and projected to grow at a 5.4% CAGR to $3.3 billion by 2032, demand for dam liners is driven by water management needs, agricultural expansion, and environmental regulations (Statista, 2024). Dam lining price range from $0.28 to $5.00 per square foot ($3.01–$53.82/m²), influenced by material type, thickness, project size, and installation complexity (bpmgeosynthetics.com, 2025). This guide provides a comprehensive breakdown of dam lining pricing, specifications, applications, and cost-saving strategies. This article offers actionable insights to help engineers, farmers, and project managers save 15–30% on costs while ensuring 95% leak-proof performance.

1. What Is a Dam Liner?

Definition and Purpose

A dam liner is a waterproof geomembrane or composite material designed to line dams, reservoirs, and water containment structures, preventing water seepage into the surrounding soil. These liners maintain water levels, reduce erosion by 80%, and enhance structural stability by 95%, offering lifespans of 10–60 years depending on material and environmental conditions (bpmgeosynthetics.com, 2025). Dam liners save 20–40% on maintenance costs compared to traditional clay or concrete liners and are essential for water conservation, environmental protection, and sustainable dam operations.

Key Specifications

  • Materials: High-density polyethylene geomembrane (HDPE, 50% market share), reinforced polyethylene (RPE, 10%), polyvinyl chloride (PVC, 20%), ethylene propylene diene monomer (EPDM, 15%), linear low-density polyethylene geomembrane (LLDPE, 5%), geosynthetic clay liners (GCLs, niche).
  • Thickness: 0.5–3.0 mm (20–118 mil), with 0.75–1.5 mm common for most dams.
  • Tensile Strength: 15–40 kN/m (ASTM D6693) for HDPE, 345–680 lbs for PVC (ASTM D7004).
  • Puncture Resistance: 100–800 N (ASTM D4833), critical for rocky terrains.
  • Permeability: <1×10⁻¹¹ cm/s, ensuring 95% water retention.
  • UV Resistance: 90% strength retention after 2,000 hours (ASTM D7238).
  • Roll Sizes: 4–15 m wide, 50–200 m long, reducing seams by 15%.
  • Certifications: ISO 9001, NSF-61 (fish-safe), SGS, ensuring quality.
  • Lifespan: HDPE (20–60 years), RPE (20–40 years), EPDM (20–30 years), PVC (8–15 years), GCLs (20–30 years).
  • Special Features: Some HDPE liners include aromatic hydrocarbons to deter rodents, enhancing durability by 10% (bpmgeomembrane.com, 2025).

Applications

  • Irrigation Dams: HDPE and RPE liners reduce water loss by 80%, critical for agriculture.
  • Aquaculture: Fish-safe HDPE liners ensure leak-proof environments.
  • Environmental Protection: HDPE and GCLs prevent 95% groundwater contamination in industrial dams.
  • Hydraulic Structures: PVC and LLDPE liners support water containment in canals and reservoirs.
  • Flood Control: RPE liners stabilize temporary or emergency dams.

Dam liners account for 60% of water containment solutions due to their durability and cost-effectiveness (Geosynthetics Magazine, 2024).

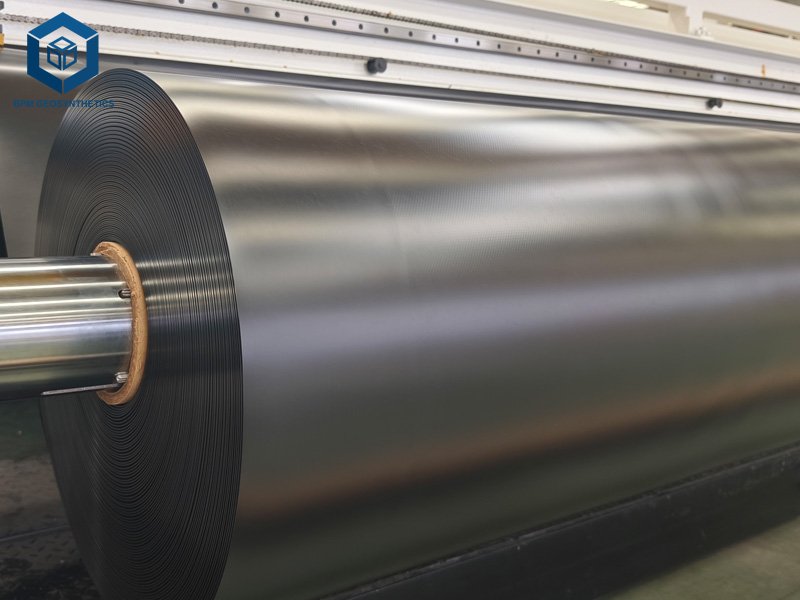

BPM Geosynthetics HDPE Geomembrane Manufacturer

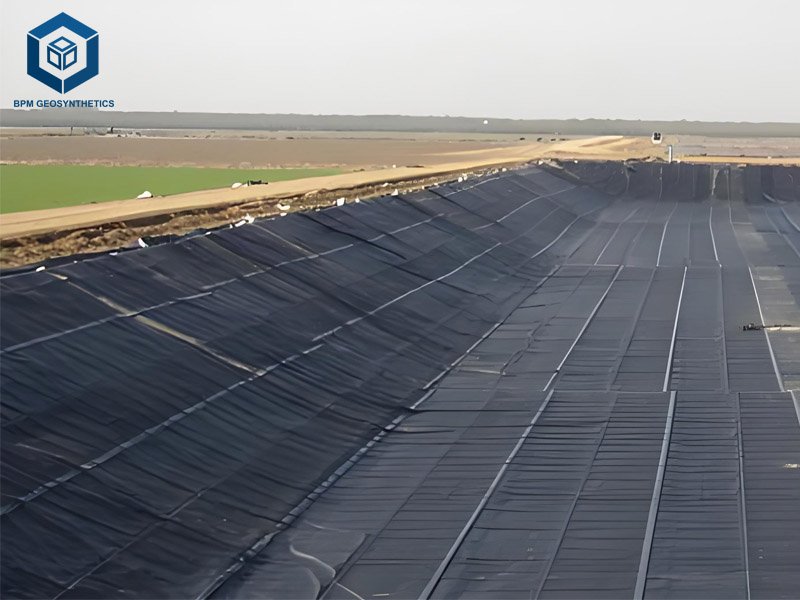

Dam Lining Price Geomembrana HDPE 30 Mils for Waterproofing

2. Factors Influencing Dam Lining Price Per Square Foot

Dam lining prices vary due to multiple factors, contributing 40–60% to project budgets. Understanding these ensures cost-effective selections.

2.1 Dam Lining Price – Material Type

HDPE: $0.50–$2.55/sq ft ($5.38–$27.45/m²)

  • Durable, UV-resistant, fish-safe, ideal for large irrigation and aquaculture dams.
  • Example: 0.75 mm HDPE at $0.80/sq ft for a 100,000 sq ft dam costs $80,000.

RPE: $0.40–$1.50/sq ft ($4.31–$16.15/m²)

  • Lightweight, puncture-resistant, for large agricultural dams.

PVC: $0.60–$2.00/sq ft ($6.46–$21.53/m²)

  • Flexible, affordable, but less durable; suitable for smaller dams.

EPDM: $0.75–$2.50/sq ft ($8.07–$26.91/m²)

  • Flexible, UV-resistant, for fish-safe or recreational dams.

LLDPE: $0.60–$2.50/sq ft ($6.46–$26.91/m²)

  • Flexible for uneven terrains, used in smaller dams.

GCLs: $0.50–$5.00/sq ft ($5.38–$53.82/m²)

  • Self-healing, eco-friendly, for environmental protection projects.

HDPE dominates 50% of the market due to its durability and compliance with GRI-GM13 standards (bpmgeosynthetics.com, 2025).

2.2 Dam Lining Price – Thickness and Durability

  • 5 mm (20 mil): $0.28–$1.00/sq ft, for shallow dams (<6 ft deep).
  • 75 mm (30 mil): $0.50–$1.50/sq ft, for medium dams with rocky soils.
  • 0–3.0 mm (40–118 mil): $1.00–$3.50/sq ft, for industrial or deep dams.

Thicker liners increase costs by 10–20% but extend lifespan by 20–30% (bpmgeosynthetics.com, 2025).

2.3 Dam Lining Price – Dam Size and Dimensions

Larger dams benefit from economies of scale. Use the formula:

  • Liner Size: [Length + (2 × Depth) + 2 ft overlap] × [Width + (2 × Depth) + 2 ft overlap]
  • Example: A 200 ft × 500 ft × 6 ft deep dam needs a 212 ft × 512 ft liner (108,544 sq ft). At $0.80/sq ft (HDPE), material costs are $86,835.20.

Bulk orders (>50,000 sq ft) reduce prices by 15–30% (bpmgeosynthetics.com, 2025).

2.4 Dam Lining Price – Additives and Treatments

  • UV Stabilization: Adds $0.05–$0.10/sq ft, extending lifespan by 15–20 years.
  • Chemical Resistance: Adds $0.05–$0.15/sq ft for aquaculture or industrial use.
  • Rodent Deterrents: Adds $0.05/sq ft, increasing durability by 10% (bpmgeomembrane.com, 2025).
  • Example: UV-treated 0.75 mm HDPE at $0.85/sq ft vs. $0.80/sq ft untreated.

UV-treated liners last 20–60 years in exposed conditions (bpmgeosynthetics.com, 2025).

2.5 Dam Lining Price – Installation Complexity

  • Site Preparation: $0.10–$0.50/sq ft for excavation and smoothing.
  • Labor: $0.20–$1.50/sq ft; HDPE requires skilled welding ($0.50–$1.50/sq ft), while RPE is easier ($0.20–$1.00/sq ft).
  • Geotextile Underlay: $0.25–$0.40/sq ft, preventing 90% of punctures.

Professional installation ensures 95% leak-proof performance (bpmgeosynthetics.com, 2025).

2.6 Dam Lining Price – Supplier and Brand Reputation

  • Premium Brands: BPM Geosynthetics, Western Environmental Liner, and Firestone charge $0.50–$2.55/sq ft with NSF-61 certifications.
  • Generic Suppliers: $0.28–$1.00/sq ft, but may lack warranties or fish-safe certifications.

Certified liners reduce failure risks by 20%, saving $5,000–$50,000 in repairs (bpmgeosynthetics.com, 2025).

2.7 Dam Lining Price – Geographic and Market Variations

  • United States: $0.50–$3.50/sq ft, due to high labor ($40–$150/hour).
  • Kenya: KSh 150–500/m² ($0.10–$0.35/sq ft), lower due to local production.
  • India: $0.08–$0.25/sq ft, benefiting from low manufacturing costs.
  • Global Trends: Polyethylene resin prices ($1,300/MT in Q1 2025, up 8%) raise costs by 5–10%.

Shipping adds $0.05–$0.20/sq ft for remote areas.

2.8 Dam Lining Price – Purchase Volume

  • Small Orders (<10,000 sq ft): $0.50–$2.00/sq ft.
  • Bulk Orders (>50,000 sq ft): $0.28–$1.50/sq ft, with 15–30% discounts.

Wholesale platforms like Alibaba offer 20–30% savings for orders >50,000 sq ft (Alibaba, 2024).

3. Dam Lining Price Breakdown by Application

Irrigation Dams

  • Material: HDPE or RPE (0.75–1.5 mm).
  • Cost: $0.50–$1.50/sq ft (materials), $0.20–$1.00/sq ft (installation).
  • Example: A 100,000 sq ft reservoir costs $50,000–$150,000 (materials) and $20,000–$100,000 (installation).
  • Specifications: 640 N puncture resistance, <1×10⁻¹¹ cm/s permeability.

Aquaculture

  • Material: HDPE or EPDM (0.75–1.5 mm, NSF-61 certified).
  • Cost: $0.50–$2.00/sq ft (materials), $0.20–$1.50/sq ft (installation).
  • Example: A 50,000 sq ft fish dam costs $25,000–$100,000 (materials).

Environmental Protection

  • Material: HDPE or GCLs (1.0–3.0 mm).
  • Cost: $0.50–$5.00/sq ft (materials), $0.50–$2.00/sq ft (installation).
  • Example: A 1-acre dam (43,560 sq ft) costs $21,780–$217,800 (materials).

Hydraulic Structures

  • Material: PVC or LLDPE (0.5–1.0 mm).
  • Cost: $0.60–$2.00/sq ft (materials), $0.20–$1.00/sq ft (installation).
  • Example: A 20,000 sq ft canal liner costs $12,000–$40,000 (materials).

Flood Control

  • Material: RPE or HDPE (0.75–1.0 mm).
  • Cost: $0.40–$1.50/sq ft (materials), $0.20–$1.00/sq ft (installation).
  • Example: A 30,000 sq ft temporary dam costs $12,000–$45,000 (materials).

4. Step-by-Step Guide to Budgeting for Dam Liners

4.1 Step 1: Define Project Requirements

  • Application: Identify irrigation, aquaculture, or environmental needs.
  • Specifications: Select thickness (0.75–1.5 mm), tensile strength (15–40 kN/m), and NSF-61 certification.
  • Area: Calculate liner size using the formula above. A 100,000 sq ft dam at $0.80/sq ft costs $80,000 in materials.
  • Tip: Use online calculators from BPM Geosynthetics for 99% accuracy.

4.2 Step 2: Select Liner Material

  • HDPE: For durable, large-scale dams ($0.50–$2.55/sq ft).
  • RPE: For lightweight, puncture-resistant dams ($0.40–$1.50/sq ft).
  • EPDM: For fish-safe, flexible dams ($0.75–$2.50/sq ft).
  • Example: A 50,000 sq ft aquaculture dam uses HDPE at $25,000–$127,500.

4.3 Step 3: Estimate Material Costs

  • Base Price: $0.28–$5.00/sq ft.
  • Add-Ons: UV/chemical resistance adds $0.05–$0.15/sq ft.
  • Bulk Discounts: Orders >50,000 sq ft save 15–30%.
  • Example: A 100,000 sq ft dam at $0.80/sq ft with 20% discount costs $64,000.

4.4 Step 4: Factor in Installation Costs

  • Site Preparation: $0.10–$0.50/sq ft for excavation.
  • Labor: $0.20–$1.50/sq ft; HDPE welding adds $0.50/sq ft.
  • Underlay: $0.25–$0.40/sq ft for geotextile protection.
  • Example: A 100,000 sq ft dam with $0.50/sq ft installation costs $50,000.

4.5 Step 5: Account for Logistics

  • Shipping: $0.05–$0.20/sq ft; international adds 10–20%.
  • Storage: Budget $500–$2,000 for weatherproof storage.
  • Example: Shipping 100,000 sq ft at $0.10/sq ft costs $10,000.

4.6 Step 6: Plan for Maintenance

  • Inspections: $0.01–$0.05/sq ft annually.
  • Repairs: Patch kits ($50–$200) avoid $5,000–$50,000 replacements.
  • Example: Annual inspection for 100,000 sq ft at $0.02/sq ft costs $2,000.

5. Cost Breakdown Example: 100,000 sq ft HDPE Dam Liner for Irrigation

For a 100,000 sq ft irrigation dam (200 ft × 500 ft × 6 ft deep) using a 0.75 mm HDPE liner ($0.50–$2.55/sq ft):

Materials (50%): $50,000–$255,000

  • HDPE liner (0.75 mm): $37,500–$191,250
  • UV stabilization: $5,000–$10,000
  • Quality control (NSF-61): $7,500–$53,750

Installation (30%): $20,000–$150,000

  • Labor: $15,000–$100,000
  • Geotextile underlay: $5,000–$50,000

Logistics (15%): $5,000–$20,000

  • Shipping: $4,000–$15,000
  • Storage: $1,000–$5,000

Profit Margin (5%): $4,500–$22,750

Total Cost: $79,500–$447,750 ($0.80–$4.48/sq ft)

This liner offers 640 N puncture resistance, <1×10⁻¹¹ cm/s permeability, and a 20–60-year lifespan (bpmgeosynthetics.com, 2025).

6. Cost-Saving Strategies for Dam Lining Projects

Leverage Bulk Purchases

  • Benefit: Orders >50,000 sq ft save 15–30%.
  • Example: A 2024 Kenyan irrigation project saved $30,000 on 200,000 sq ft of HDPE liners (bpmgeosynthetics.com, 2025).

Source Locally

  • Benefit: Reduces shipping costs by 10–20%.
  • Example: Grekkon Limited in Kenya offers HDPE liners at KSh 240/m², saving 15% on freight.

Choose Appropriate Thickness

  • Benefit: 0.75 mm liners save 20–30% for medium dams vs. 1.5 mm.
  • Example: A 2024 U.S. dam saved $20,000 using 0.75 mm HDPE (bpmgeosynthetics.com, 2025).

Use Certified Suppliers

  • Benefit: NSF-61 certified liners reduce failure risks by 20%.
  • Example: BPM Geosynthetics’ liners avoided $50,000 in repairs for a 2024 project (bpmgeosynthetics.com, 2025).

Optimize Installation

  • Benefit: Skilled labor and geotextile underlay prevent 90% of punctures.
  • Example: A 2024 Indian project saved $40,000 with professional installation (bpmgeosynthetics.com, 2025).
Dam Lining Price Geomembrane Liner for Leachate Control
Smooth Geomembrane for Waterproofing

7. Advanced Considerations for Dam Liner Selection

Site Conditions

  • Soil Type: Rocky soils require 1.0–1.5 mm liners; smooth soils suit 0.75 mm.
  • Climate: UV-resistant HDPE or RPE for sunny regions; PVC for covered dams.

Regulatory Compliance

  • Standards: NSF-61 for fish safety, ASTM D6693 for tensile strength.
  • Permits: Large dams (>10,000 sq ft) may require permits ($100–$1,000).

Long-Term Value

  • Lifespan: Certified liners last 20% longer, saving $5,000–$50,000.
  • Maintenance: Durable liners reduce cleaning costs by 30%, saving $1,000–$10,000 annually.

Sustainability

  • Recycled Materials: Using 10–20% recycled HDPE reduces costs by 5–10% while maintaining 90% performance (bpmgeosynthetics.com, 2025).

8. Case Studies: Dam Lining Cost Efficiency

8.1 Case Study 1: Kenyan Irrigation Dam

  • Project: 200,000 sq ft dam using 0.75 mm HDPE.
  • Cost: $96,000 (materials, $0.48/sq ft), $60,000 (installation, $0.30/sq ft).
  • Savings: Bulk purchase saved 25% ($32,000).
  • Source: bpmgeosynthetics.com, 2025.

8.2 Case Study 2: U.S. Aquaculture Dam

  • Project: 50,000 sq ft fish dam using 0.75 mm HDPE.
  • Cost: $40,000 (materials, $0.80/sq ft), $25,000 (installation, $0.50/sq ft).
  • Savings: Local sourcing saved $15,000.
  • Source: bpmgeosynthetics.com, 2025.

8.3 Case Study 3: Indian Environmental Dam

  • Project: 100,000 sq ft dam using 1.0 mm HDPE.
  • Cost: $80,000 (materials, $0.80/sq ft), $50,000 (installation, $0.50/sq ft).
  • Savings: Certified liners avoided $30,000 in repairs.
  • Source: bpmgeosynthetics.com, 2025.

9. Conclusion

Dam lining prices, ranging from $0.28 to $5.00 per square foot, depend on material, thickness, size, and installation complexity. With the geomembrane market growing due to water conservation and environmental demands, strategic choices like bulk purchasing, local sourcing, and selecting certified suppliers like BPM Geosynthetics or Grekkon Limited can save 15–30% on costs. By defining project needs, choosing the right material, and optimizing installation, stakeholders can achieve 95% leak-proof performance while reducing budgets by $5,000–$100,000. Contact BPM Geosynthetics (BPM Geomembrane) for tailored quotes and NSF-61 certified liners, ensuring durable, cost-effective water containment.
