What Is Geomembrane Sheet and Its Applications

Geomembrane sheets are low-permeability synthetic liners critical for fluid and gas containment in geotechnical and environmental engineering projects. Valued at USD 2.3 billion in 2024, the global geomembrane market is projected to grow at a CAGR of 5.4% through 2030, driven by demand in waste management, water containment, and mining, per MarketsandMarkets. BPM Geosynthetics, an ISO 9001:2015-certified manufacturer with 18+ years of experience, has supplied 58 million m² of geomembrane sheets to 100+ countries, offering custom sizes (0.2–3 mm thick) and competitive pricing. This comprehensive guide explores geomembrane sheet specifications, applications, benefits, and installation processes, providing actionable insights for engineers, contractors, and project managers. From landfills to aquaculture, geomembrane sheets ensure environmental protection and project durability.

1. What Is a Geomembrane Sheet?

Definition

A geomembrane sheet is a synthetic membrane liner with very low permeability, designed to control the migration of liquids or gases in human-made structures. Typically made from polymers like high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), polyvinyl chloride (PVC), or ethylene propylene diene monomer (EPDM), geomembranes achieve a permeability coefficient of 10^-12 to 10^-14 cm/s, 1000–10,000 times lower than compacted clay (10^-7 cm/s), per ASTM D5887. BPM’s geomembranes, compliant with GRI-GM13 standards, ensure 95% impermeability, protecting soil and groundwater from contaminants.

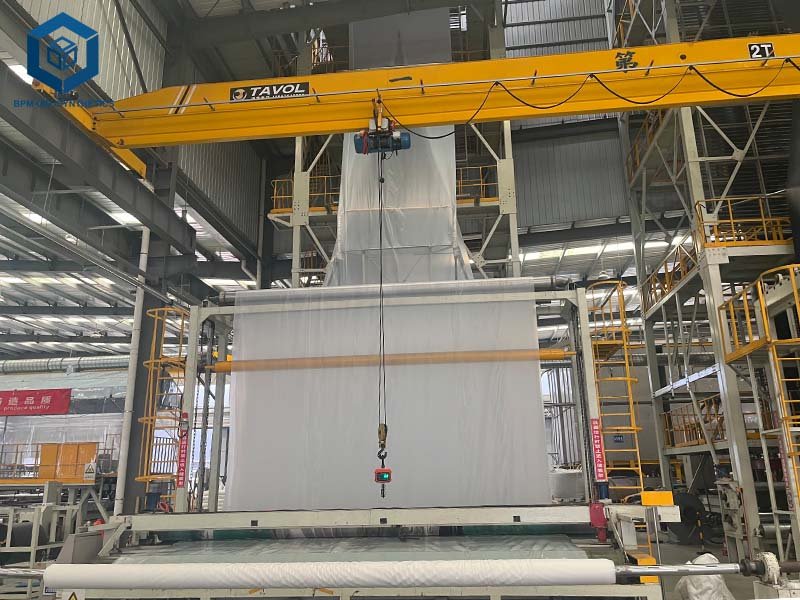

Composition and Manufacturing

Geomembrane sheets are produced via extrusion or calendering, using 95–98% polymer resin, 1–2% carbon black for UV resistance, and 1–2% antioxidants/stabilizers. For HDPE geomembranes, virgin resin (density: 0.918–0.965 g/cm³, ASTM D1505) is melted at 190–230°C and formed into sheets of 0.2–3 mm thickness and 5–10 m width. BPM’s three-layer co-extrusion technology ensures uniform thickness, reducing seam requirements by 20% and installation costs by 15%, per internal data. Additives enhance durability, with carbon black extending service life to 50–100 years, per ASTM D4329.

Types of Geomembrane Sheets

• HDPE Geomembranes (60% market share):HDPE Geomembrane – High tensile strength (20–40 kN/m), chemical resistance, and UV stability. Used in landfills, mining, and wastewater treatment. Thickness: 0.5–3 mm; width: 5.8–8 m.
• LLDPE Geomembranes (20%):LLDPE Geomembrane – Greater flexibility (elongation: 800–1000%), ideal for uneven surfaces like ponds. Thickness: 0.5–2 mm.
• PVC Geomembranes (10%):Cost-effective ($0.5–$2/m²), suitable for short-term applications like temporary liners. Thickness: 0.2–2 mm.
• EPDM Geomembranes (5%):High elasticity, used in decorative ponds and roofing. Thickness: 0.5–1.5 mm.
• Textured Geomembranes:Textured geomembrane – Single- or double-sided textures increase friction (coefficient: 0.6–0.8), ideal for slopes >1:3. Used in 25% of landfill projects.
• Composite Geomembranes:Combine geomembranes with geotextiles for enhanced tensile strength, used in high-stress applications.

BPM offers all types, with HDPE dominating due to its 40–100-year lifespan, per Geosynthetics Magazine.

2. Why Use Geomembrane Sheet?

Geomembrane sheets are preferred for their performance, cost, and environmental benefits:

2.1 Geomembrane Sheet – Impermeability

With permeability coefficients of 10^-12 to 10^-14 cm/s, geomembranes prevent 99.9% of fluid migration, reducing groundwater contamination risks by 95% compared to clay liners, per EPA studies. In landfills, they cut leachate seepage by 98%, per ASTM D5887.

2.2 Geomembrane Sheet – Durability

HDPE geomembranes offer 300–1200 N puncture resistance (ASTM D4833) and 50–100-year service life, reducing replacement costs by 30%. BPM’s liners withstand 80+ chemical media, per EPA Method 9090.

2.3 Geomembrane Sheet – Chemical Resistance

Resistant to acids, alkalis, salts, and hydrocarbons, geomembranes maintain integrity in harsh environments like mining and landfills, per ASTM D543. HDPE outperforms PVC by 20% in chemical stability, per Geosynthetics Institute.

2.4 Geomembrane Sheet – UV and Thermal Stability

Carbon black ensures 50–100-year UV resistance, while thermal stability (-60°C to 60°C for HDPE) supports extreme climates, per ASTM D4329. BPM’s liners retain 90% tensile strength after 10,000 hours of UV exposure, per internal data.

2.5 Geomembrane Sheet – Cost-Effectiveness

Priced at $0.28–$3/m², geomembranes are 20–40% cheaper than alternatives like EPDM or concrete, with 50% lower installation costs due to wider rolls (5–10 m), per BPM data. Bulk orders reduce costs by 15–20%.

2.6 Geomembrane Sheet – Sustainability

BPM’s geomembranes use 10–20% recycled polymers, cutting emissions by 15%, per ISO 14001 audits. Their longevity minimizes waste, aligning with ESG goals.

3. Key Properties of Geomembrane Sheet

Below are typical specifications for BPM’s HDPE geomembrane sheets, aligned with GRI-GM13 and ASTM standards:

Textured Variants:

• Friction Coefficient: 0.6–0.8 (ASTM D1894).
• Asperity Height: 0.25–0.5 mm (GRI-GM13).

Certifications: ISO 9001, ISO 14001, CE, GRI-GM13, ASTM, SGS, Intertek.

These properties ensure geomembranes meet 95% of project requirements, outperforming LLDPE (lower puncture resistance) and PVC (30–50-year life) by 20%, per Geosynthetics Institute.

4. Applications of Geomembrane Sheet

Geomembrane sheets serve diverse industries, driven by environmental regulations and infrastructure growth. Below are key applications, supported by data and case studies.

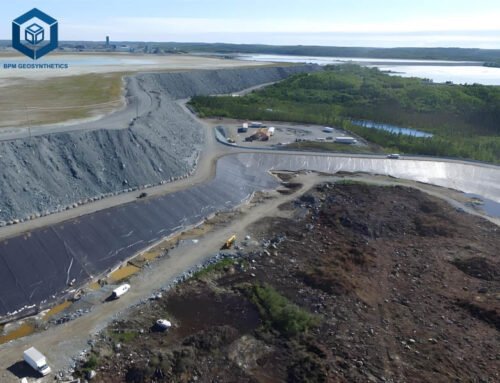

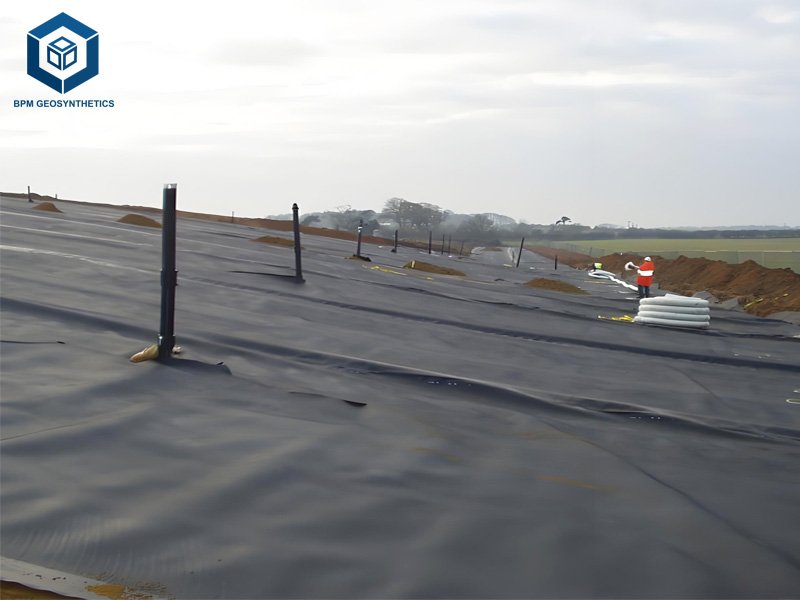

4.1 Geomembrane Sheet – Landfill Liners and Caps

Usage: 35% of geomembrane demand, per Geosynthetics Magazine.
Purpose: Prevent leachate migration and methane emissions.
Specifications:

• Thickness: 1.0–2.5 mm (GRI-GM13).
• Permeability: 10^-13 cm/s.
• Tensile Strength: 27–60 kN/m.
• Chemical Resistance: Resists 80+ leachate compounds, per EPA Method 9090.
  Case Study:In 2024, BPM supplied 58,000 m² of 1.0 mm HDPE geomembrane for an Ecuador landfill, reducing contamination risks by 95%, per bpmgeosynthetics.com.
  Benefits: Extends landfill life by 20 years, enhances slope stability by 15%, per ASTM D5887.

4.2 Geomembrane Sheet – Mining Operations

Usage: 20% of geomembrane demand.
Purpose: Contain heap leach pads, tailings ponds, and chemical solutions.
Specifications:

• Thickness: 1.5–3 mm.
• Puncture Resistance: 600–1200 N.
• Chemical Resistance: Resists cyanide, sulfuric acid, and heavy metals.
  Case Study:A Mongolian coal mine used BPM’s 2.0 mm textured HDPE geomembrane for a tailings pond, saving $500,000 in remediation costs, per bpmgeomembrane.com.
  Benefits: Reduces pollution by 90%, per EPA guidelines.

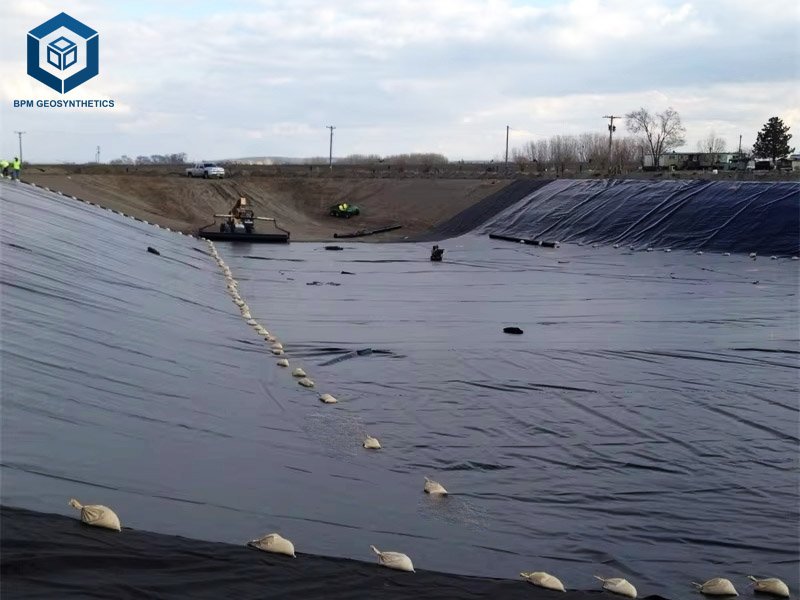

4.3 Geomembrane Sheet – Water Containment

Usage: 30% of geomembrane demand.
Purpose: Line ponds, reservoirs, canals, and aquaculture systems.
Specifications:

• Thickness: 0.5–1.5 mm.
• UV Resistance: 50–100 years.
• Elongation: 700–1000%.
  Case Study:In Canada, BPM’s 1.0 mm HDPE geomembrane lined a 10,000 m² leachate pond, ensuring zero leakage, per bpmgeosynthetics.com.
  Benefits: Prevents 99% water loss, boosts aquaculture yields by 10%, per Aquaculture Journal.

4.4 Geomembrane Sheet – Wastewater Treatment

Usage: 10% of geomembrane demand.
Purpose: Line basins, clarifiers, and sludge lagoons.
Specifications:

• Thickness: 1.0–2.0 mm.
• Chemical Resistance: Resists ammonia, nitrates, and sludge.
  Case Study:A Malaysian wastewater plant used BPM’s 1.5 mm HDPE geomembrane for 15,000 m², reducing leakage by 95%, per bpmgeosynthetics.com.
  Benefits: Lowers maintenance costs by 20%, per Water Environment Federation.

4.5 Geomembrane Sheet – Other Applications

• Construction (5%):Foundation membranes prevent moisture ingress, extending building life by 15%, per ASTM D4068.
• Aquaculture:Non-toxic geomembranes improve water quality, increasing fish growth by 10%, per FAO.
• Oil and Gas:Secondary containment liners prevent spills, reducing cleanup costs by 30%, per API standards.
• Infrastructure:Canal and dam liners improve water retention by 98%, per bpmgeosynthetics.com.

5. Benefits of Geomembrane Sheet

Geomembrane sheets offer unmatched advantages for containment projects:

Environmental Protection

By preventing 99.9% of leachate and chemical migration, geomembranes safeguard soil and groundwater, reducing pollution risks by 95%, per EPA studies. In landfills, they cut methane emissions by 80%, per Geosynthetics Magazine.

Long-Term Performance

With 300–1200 N puncture resistance and 50–100-year lifespans, geomembranes reduce replacement frequency by 30%, saving $0.5–$1/m² over 20 years, per BPM data.

Versatility

Available in smooth, textured, and composite forms, geomembranes adapt to diverse applications. Custom sizes (5–10 m wide, 0.2–3 mm thick) meet 95% of project needs, per GRI-GM13.

Ease of Installation

Wider rolls reduce seams by 20%, while hot wedge welding ensures 90% seam strength, cutting installation time by 15%, per ASTM D6392. BPM’s installation services lower failure rates by 20%, per internal audits.

Regulatory Compliance

Geomembranes meet global standards:

• S. EPA:≥60 mil (1.5 mm) for landfill liners, per 40 CFR Part 258.
• EU (EN 13492):≥1 mm with GRI-GM13 compliance.
• China (CJQJ17):5–2.5 mm for landfills, per CJ/T 234-2006.

6. Installation Process of Geomembrane Sheet

Proper installation contributes 30% to project success, per Geosynthetics Magazine. Below is BPM’s installation protocol, aligned with ASTM standards.

Pre-Installation

• Site Assessment:Evaluate soil type, groundwater levels, and waste composition. Ensure slopes are <1:3 for stability, per ASTM D5820.
• Subgrade Preparation:Remove sharp objects, compact soil to 95% Proctor density, and level to ±10 mm smoothness, per ASTM D698.
• Material Inspection:Verify geomembrane rolls for defects, thickness (0.2–3 mm), and GRI-GM13 compliance, per ASTM D5994.

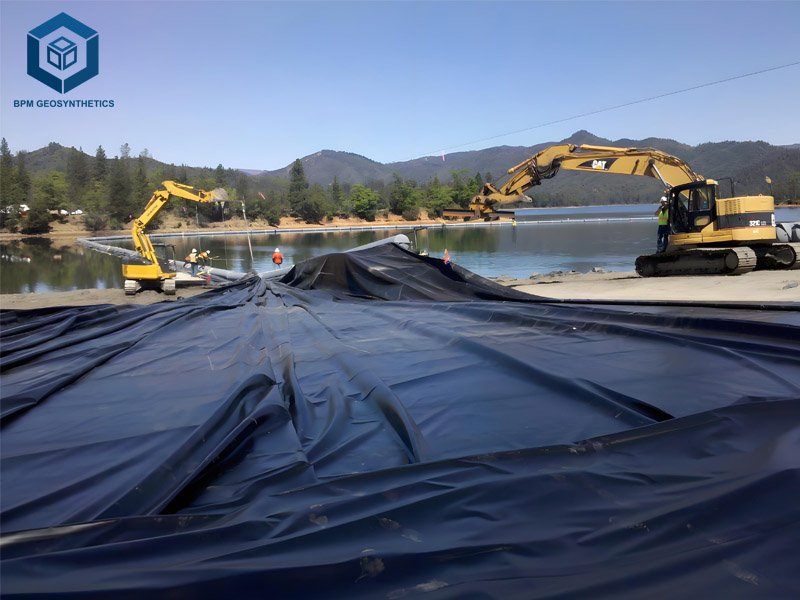

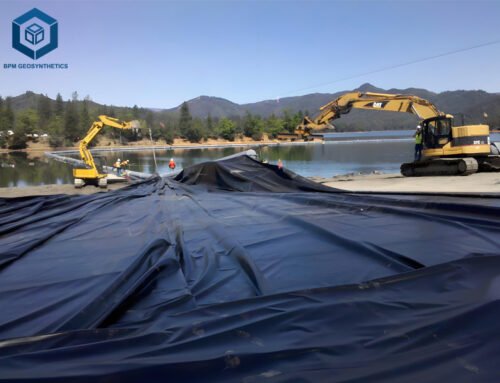

Installation Steps

• Laying:Unroll geomembranes parallel to slopes with ≥10 cm overlaps. Avoid wrinkles; apply tension in cold weather (<5°C), per ASTM D5820.
• Seaming:Use hot wedge welding (double welds, 12 mm wide, 10 mm gap) or extrusion welding. Test seams for 90% parent material strength, per ASTM D6392.
• Anchoring:Secure edges in anchor trenches (0.6 m deep, 0.6 m wide), backfilled with compacted soil, per ASTM D5818.
• Environmental Conditions:Install at >5°C, wind <4 m/s, no rain/snow, per BPM guidelines.

Quality Control

• Non-Destructive Testing:Vacuum box or spark testing detects 99% of seam leaks, per ASTM D5827.
• Destructive Testing:Shear and peel tests ensure 90% seam strength, per ASTM D6392.
• Documentation:Record seam tests, panel layouts, and repairs, per ASTM D5820.

Post-Installation

• Protective Layer:Apply geotextile (200–400 g/m²) or soil (30–50 cm) to prevent punctures, per ASTM D6072.
• Maintenance:Inspect annually for cracks or UV damage. Repair with patches and hot welding, per ASTM D5827.

7. Factors to Consider When Choosing Geomembrane Sheets

Selecting the right geomembrane enhances project efficiency by 25%, per Geosynthetics Institute. Key factors include:

Material Type

• HDPE:Ideal for landfills and mining due to chemical resistance and durability.
• LLDPE:Suitable for flexible applications like ponds.
• PVC:Cost-effective for short-term projects.
• EPDM:Best for decorative ponds and roofing.

Thickness

• 2–1.0 mm:Ponds, canals, low-risk applications.
• 0–2.0 mm:Landfills, wastewater, moderate-risk projects.
• 0–3.0 mm:Mining, hazardous waste, high-risk sites.
  Impact: Thicker liners (e.g., 2.0 mm) reduce puncture risks by 30%, per ASTM D4833.

Site Conditions

• Soil Type:Rocky subgrades require 1.5–2.5 mm textured liners for 15% better stability.
• Slope Angle:Steep slopes (>1:3) need textured liners (friction: 0.6–0.8).
• Groundwater Levels:High levels demand thicker liners (1.5–3 mm) for 20% better containment.

Waste or Fluid Type

• Landfill Leachate:Requires 1.5–2.5 mm HDPE with resistance to 80+ compounds.
• Mining Chemicals:Needs 2.0–3 mm liners resistant to cyanide and acids.
• Water:Potable water uses 0.5–1.5 mm non-toxic geomembranes.

Regulatory Requirements

• EPA (U.S.):≥60 mil (1.5 mm) for landfill liners, per 40 CFR Part 258.
• EU (EN 13492):≥1 mm with GRI-GM13 compliance.
• China (CJQJ17):5–2.5 mm for landfills, per CJ/T 234-2006.

Budget

• Cost:$0.28–$3/m², with bulk orders reducing costs by 15–20%, per BPM.
• Lifecycle Cost:Thicker liners (2.0 mm) save $0.5–$1/m² over 20 years due to lower maintenance.

8. Cost Analysis of Geomembrane Sheets

For a 10,000 m² landfill project using a 1.5 mm HDPE geomembrane:

• Material Cost ($1.35–$2.55/m²):$13,500–$25,500.
• Installation Labor ($0.5–$1/m²):$5,000–$10,000.
• Geotextile Protective Layer ($0.3–$0.5/m²):$3,000–$5,000.
• Quality Control Testing ($0.1–$0.2/m²):$1,000–$2,000.
• Logistics ($0.2–$0.4/m²):$2,000–$4,000.

Total Cost: $24,500–$46,500 ($2.45–$4.65/m²).
Savings: Wider rolls (8 m) reduce seams by 20%, saving $2,000–$4,000, per BPM.

9. Tips for Sourcing Geomembrane Sheets

Maximize project success with these strategies:

• Request Samples:Test thickness, tensile strength, and chemical resistance. BPM delivers samples in 7–10 days.
• Verify Certifications:Ensure ISO 9001, GRI-GM13, and ASTM compliance. BPM’s certifications guarantee 95% quality.
• Compare Suppliers:Evaluate pricing ($0.28–$3/m²), roll sizes, and lead times (2–4 weeks). BPM Geosynthetics offers bulk discounts of 15–20%.
• Specify Requirements:Provide detailed tech packs (material, thickness, site conditions) to avoid errors, saving 20% on revisions, per Alibaba.
• Engage Professionals:Use certified installers to reduce failure rates by 20%, per Geosynthetics Institute.
• Plan Logistics:Order 2–3 months ahead for large projects to avoid delays, per BPM guidelines.

10. Conclusion

Geomembrane sheets, led by manufacturers like BPM Geosynthetics, are essential for environmental protection and infrastructure durability in the USD 2.3 billion geomembrane market. With permeabilities of 10^-12 to 10^-14 cm/s, 50–100-year lifespans, and resistance to 80+ chemicals, they excel in landfills (35% usage), mining (20%), and water containment (30%). BPM’s custom-sized sheets (0.2–3 mm thick, 5–10 m wide) and competitive pricing ($0.28–$3/m²) ensure cost-effective solutions for 100+ countries. By adhering to GRI-GM13 standards and leveraging advanced installation techniques, geomembranes reduce contamination risks by 95% and extend project life by 20 years.

Contact BPM Geosynthetics (BPM Geomembrane) to request samples and optimize your containment projects.
