BPM has been committed to the development and production of high-quality geomembrane in ground pond lines since its foundation in 2007. BPM HDPE eomembrane pond liner series products include smooth geomembrane, rough geomembrane, composite geomembrane and other products. As the governments pays more and more attention to environmental protection, more and more large-scale farms have begun to build supporting environmental protection facilities, such as oxidation ponds, biogas digesters and other projects, which not only protect the surrounding environment, but also increase economic benefits and reduce cost of production. This is a large pig farm in Thailand, covering an area of more than 40,000 square meters, and the planned number of breeding is close to 10,000. The farm uses BPM HDPE geomembrane inground pond liners to build a biogas digester with a volume of 20,000 cubic meters to treat pig excrement. HDPE geomembrane pond liners mainly plays the role of anti-seepage, isolation and storage of biogas in the biogas digester, preventing pollutants from entering the earthen pond, causing pollution to the groundwater and soil, thereby protecting the surrounding environment and giving daily life. Provides a clean energy and greatly saves production costs. HDPE geomembrane pond liner is an ideal anti-seepage and isolation material.
BPM HDPE Geomembrane Introduction

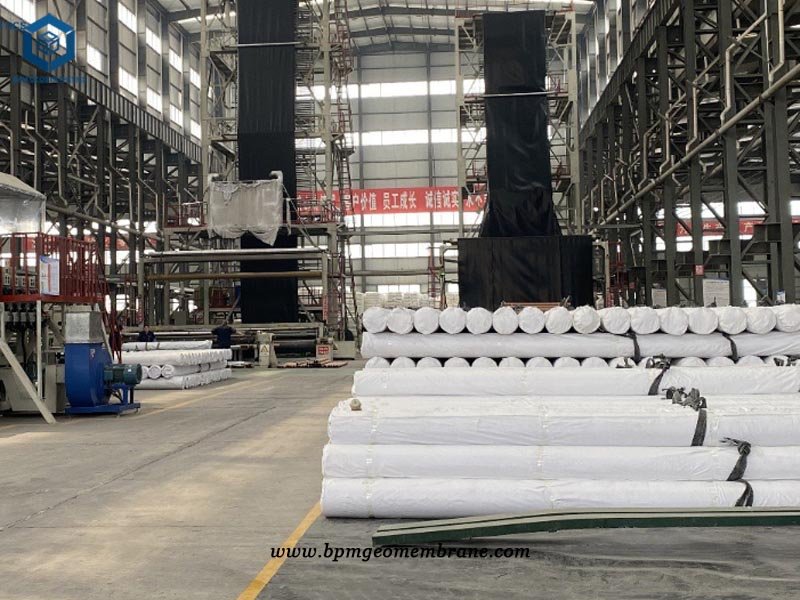

BPM HDPE geomembrane inground pond liners are made of pure imported HDPE primary resin particles, added with carbon black, anti-aging agent, stabilizer and other auxiliary materials formula, using world-class fully automated geomembrane production equipment, produced by a three-layer co-extrusion blow molding process , HDPE geomembrane inground pond liners are the effective waterproof and barrier engineering material. BPM HDPE geomembrane is packaged with double-layer white woven geomembrane, and each roll of geomembrane is added with 2 reinforced straps to facilitate the loading and unloading of the geomembrane by customers, and also make the overall packaging more tidy and beautiful. BPM HDPE geomembrane inground pond liners have excellent puncture resistance, stretch resistance, UV resistance and corrosion resistance, so it is widely used in aquaculture, reservoirs, artificial lakes, biogas digesters, river remediation, dams, tailings and waste residue treatment , landfills, saltworks and other projects. BPM HDPE geomembrane has excellent sealing and anti-seepage properties, can effectively retain the water in the pond, and can also effectively prevent the waste liquid and harmful substances generated in the slag, garbage from entering the soil and causing pollution to the environment.
HDPE geomembrane inground pond liners have the characteristics of good sealing, corrosion resistance and easy installation. It can replace cement and be used for the anti-seepage of oxidation pond, which can greatly save installation time and construction cost. HDPE geomembrane also has good extensibility. It can store more biogas and provide more clean energy for production and life.
Project Details of HDPE Inground Pond Liners for Biogas Digester Project in Thailand

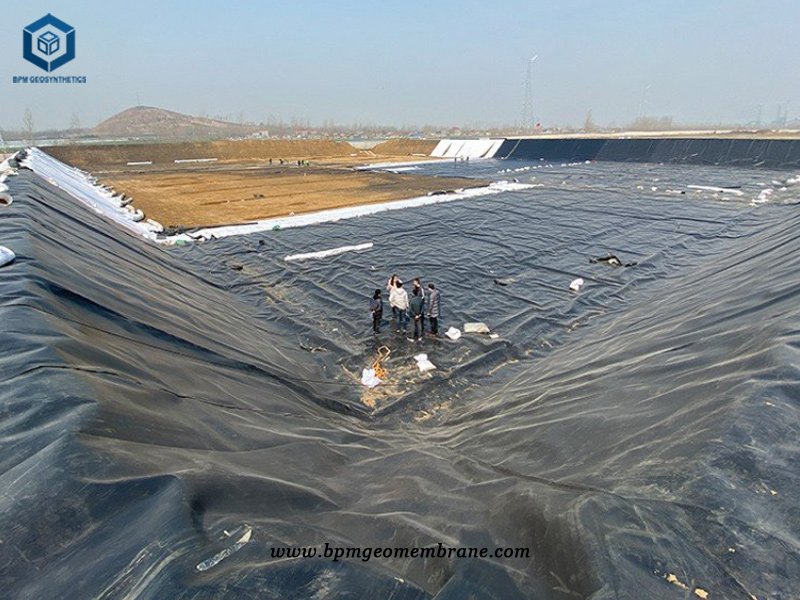

The customers who visited our website and contacted us. After communication, the customer sent his request to us. Let our company be fully responsible for his project, including construction design, provision of geomembrane materials and installation work. After the both of us confirmed, our business personnel, technicians and construction engineers came to the site together to conduct surveys and surveys to prepare for the design and construction of the next construction drawings. According to the local topography, groundwater level and other factors, our technicians and engineers jointly designed the construction plan and started construction. Because of the high groundwater level in the local area, shallow excavation and accumulation on the ground were adopted, so that most of the entire project was above the ground to prevent excessive groundwater gushing, resulting in bulging at the bottom, and reducing the difficulty of construction.
In the construction process, first level the ground, dig a trench for the exhaust pipe at the bottom, and place a perforated PE pipe to discharge ground gas and upwelling groundwater to prevent bulging at the bottom. Then, a layer of 400 gsm PET non-woven geotextile fabric was laid on the ground to protect the HDPE geomembrane inground pind liners and prevent sharp objects on the ground from damaging the HDPE geomembrane pond liner.

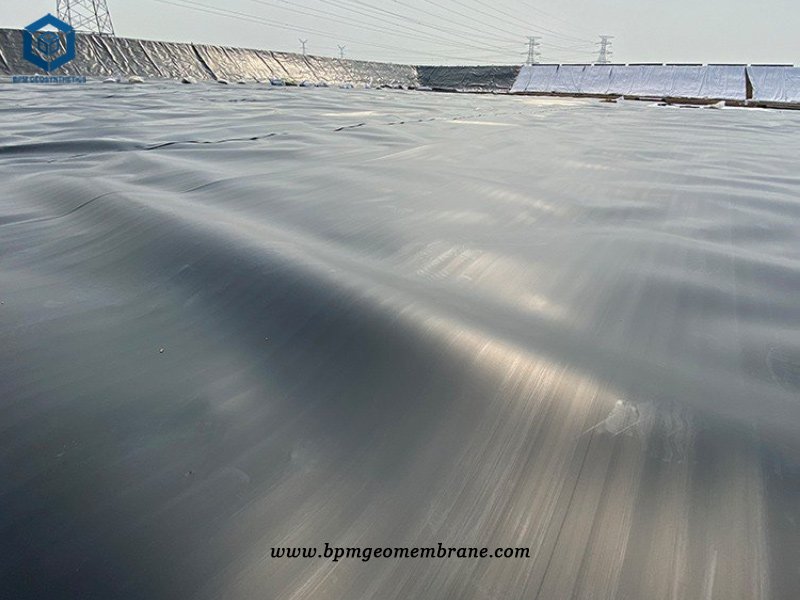

On the top of the geotextile, the HDPE geomembrane was formally laid. In this project, the customer chose a Virgin material HDPE geomembrane inground pond liner with a thickness of 1.5mm to ensure the quality of the project and the service life of the inspection post.
After the HDPE geomembrane pond liner is welded and confirmed that there are no leaks, some perforated PE pipes are placed on the HDPE geomembrane to discharge the waste residue generated at the bottom of the biogas digester.
Finally, a layer of HDPE geomembrane with a thickness of 1.5mm is covered on the top, and the sealing work is done. It has now been delivered for use.
Benefits:
- HDPE geomembraneinground pond lineris more cost-effective. Compared with concrete, the construction is simpler and faster.
- It is not easy to damage and simple to repair. Compared with concrete, HDPE geomembrane pond lineris less prone to damage and cracks, and has better sealing performance. Repairing is also easier and faster.
- In the long run, the production cost can be greatly saved.
- Low maintenance cost in later period.
Summary:
Through the construction of this biogas digester project, when we encountered problems, we also increased our experience in helping customers solve problems. When customers encounter problems, we can also better propose solutions for customers, which improves the quality and efficiency of our services.
About BPM
As the the professional geomembrane manufacturer and supplier, BPM has been dedicated to supplying one stop geomembranes and services to worldwide customers since its foundation in 2010. Our main innovative, high quality geosynthetics products include geomembranes, geotextiles, geocells, geosynthetic clay liners (GCLs), drainage boards, geogrids, etc. All BPM brand HDPE geomembranes have passed the certificates of the ISO9001, ISO14001, TUV, Soncap, SASO, BV certificates and the test of SGS and Intertek etc. Our geomembrane products have been exported to over 36 countries. If you have any questions or inquiries, please fill in and submit the form to contact us.
